Splice closures application:
– Telecommunication networks
– CATV networks
– Local area networks
– Aerial hanger, Wall-mounting, Directly buried
– Widely used in FTTH access network
*Holds up to 96 fibers.
*Easy to re-enter
*Cable entry/exit ports
*Pressure testing valve nod earth deriving device
*integrated seal, air right and water proof
*Ideal for cable repair
*Can be used in through, branch or mick span splice locations
* Suitable for aerial, underground duct or direct burial applications

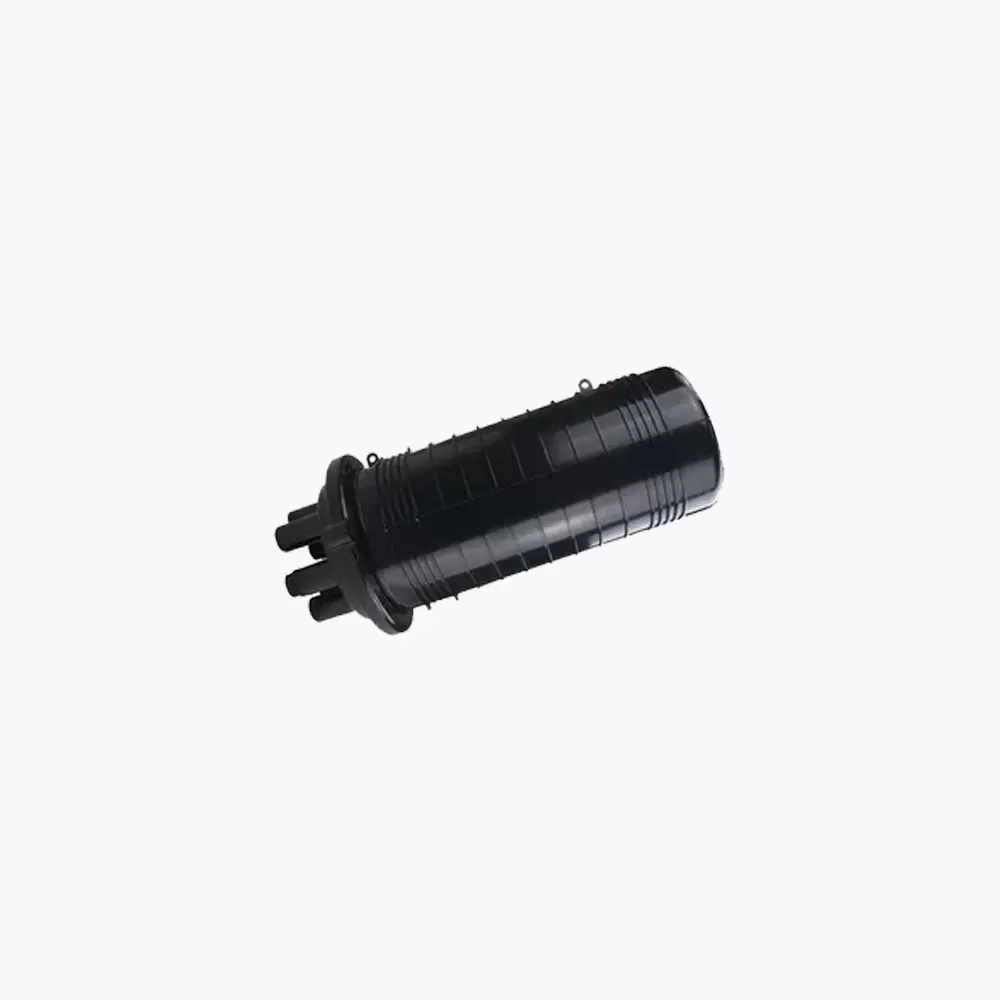

Quick Detail about vertical fiber optic splice closure:
– Name: dome fiber optic joint splice closure box
– Part number: Dome 3-3 or 3in-3out(fo)

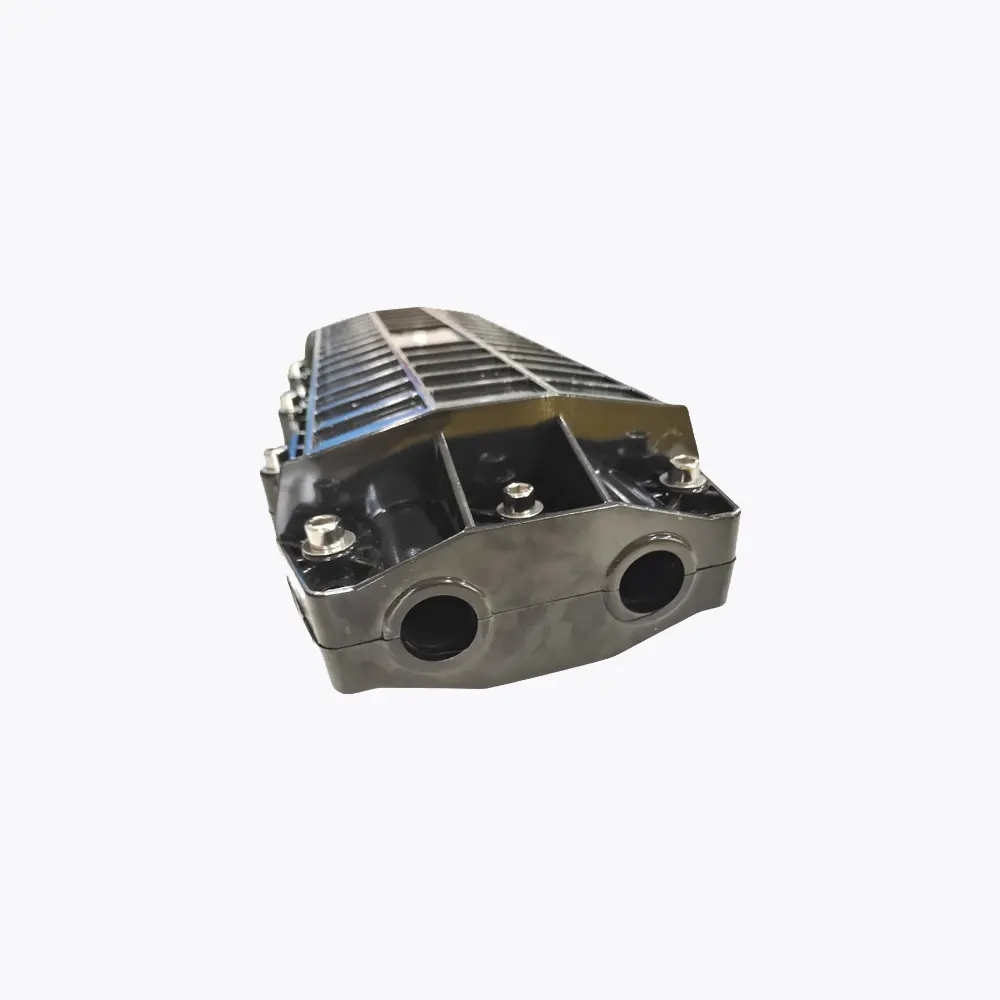

– Cable entry port: 6 ports
– Capacity of fibers: 144 cores
– Size: 480x240mm
– Weight: 3.0kg
– Material: PC Plastic or PPR or ABS

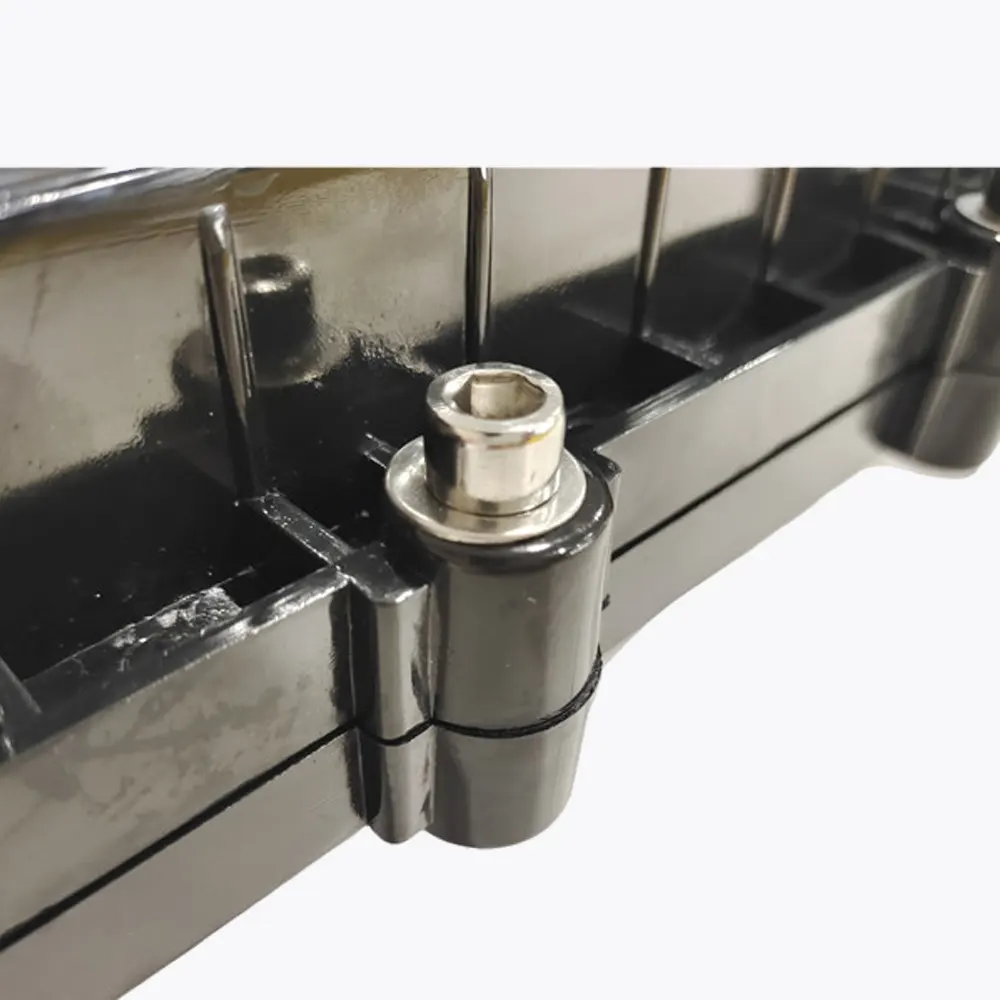

– Sealing structure: Screw Thread mechanical seal
– Cable Diameter: 7.0-22.0mm
– Working temperature: -40℃ to 65℃
– Application: Aerial, Direct buried, underground, pipeline, hand-holes
Characteristic
1.Suitable for ordinary fiber and ribbon fiber.

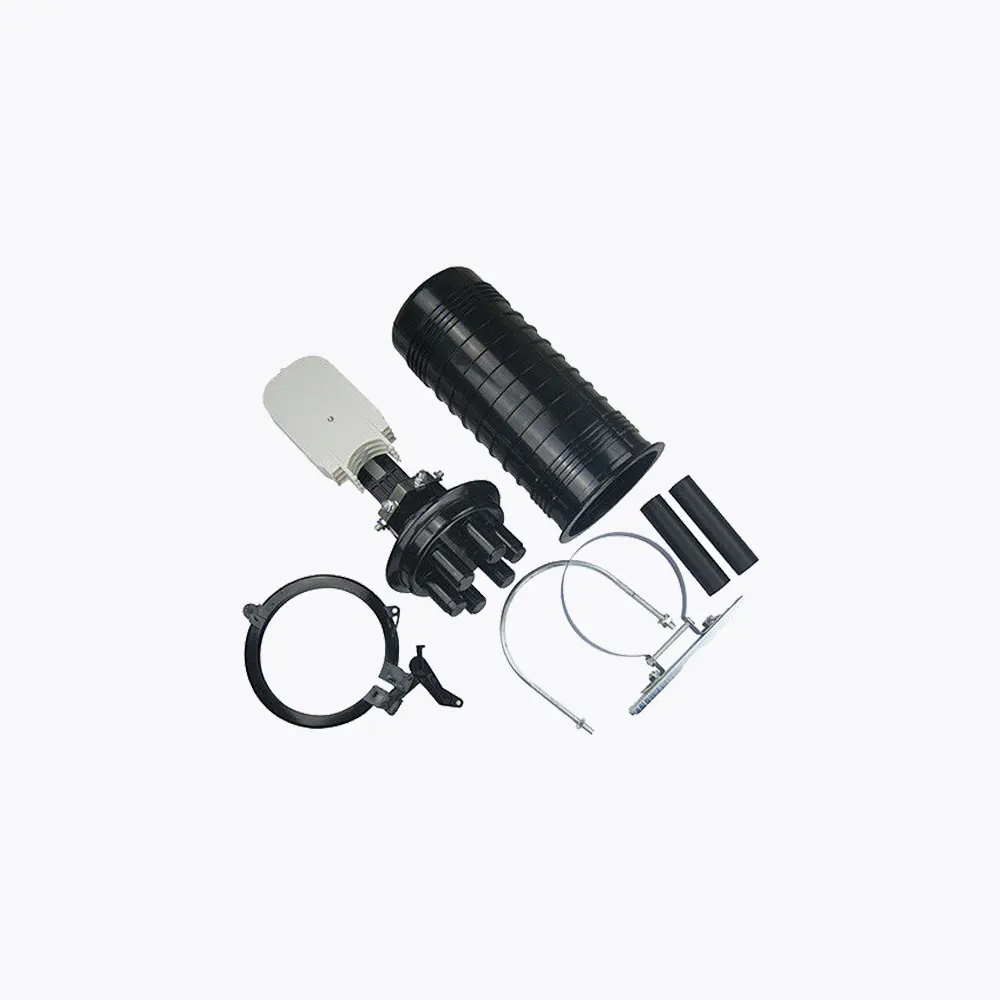

2.Fully kitted with all parts for convenient operation.

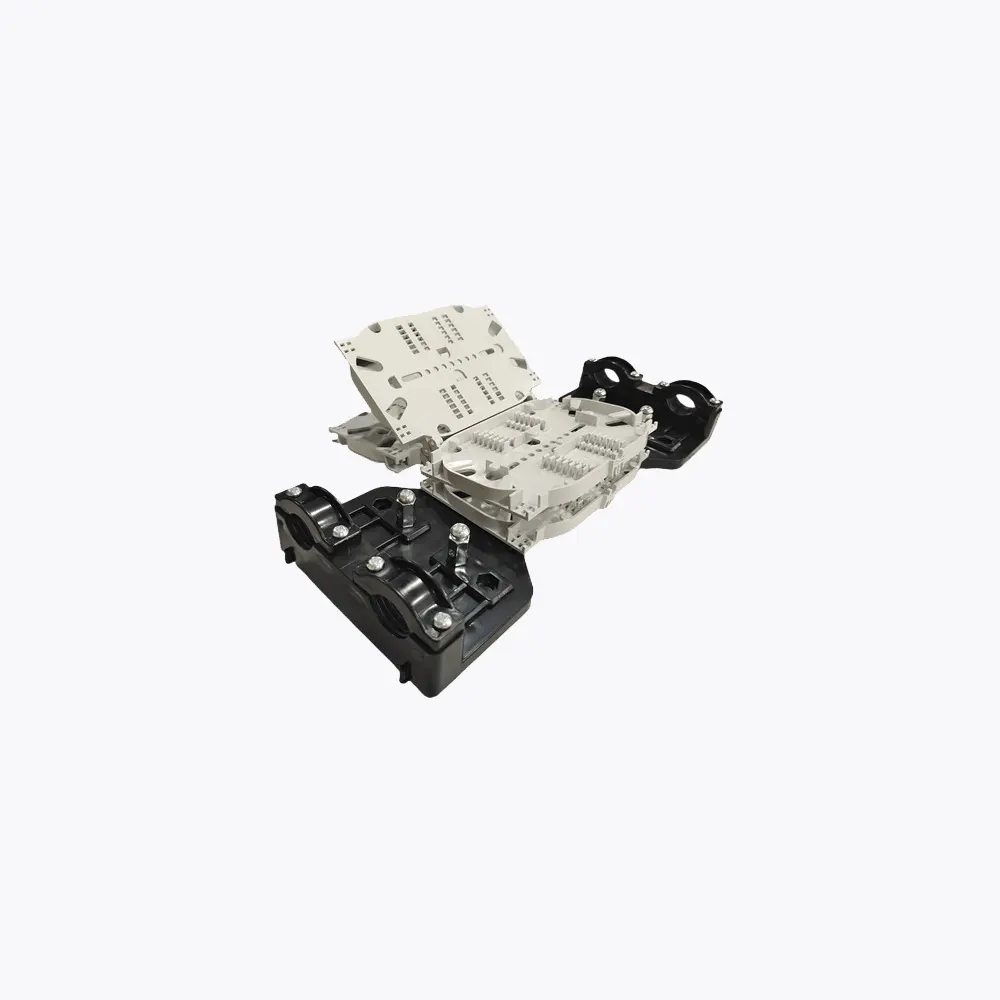

3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Mechanical Sealed to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.
