All our products are in compliance with the highest quality standards. They are fabricated by using quality raw materials. Starting from raw material inspection, through in – process inspections to final inspection, checkpoints and control points are maintained to ensure a quality of the product. We strive hard to achieve the excellence and customer satisfaction to the fullest. Our entire range of products is appreciated for its several features such as durability, safety, superior performance and ability to withstand temperature variations.
Indoor telephone cables play a crucial role in establishing reliable communication networks within buildings,
facilitating seamless voice and data transmission. In a bustling metropolis like Chennai, India, where connectivity is paramount, the significance of these cables cannot be overstated. From residential complexes to commercial establishments, indoor telephone cables form the backbone of communication infrastructure, enabling individuals and businesses to stay connected.

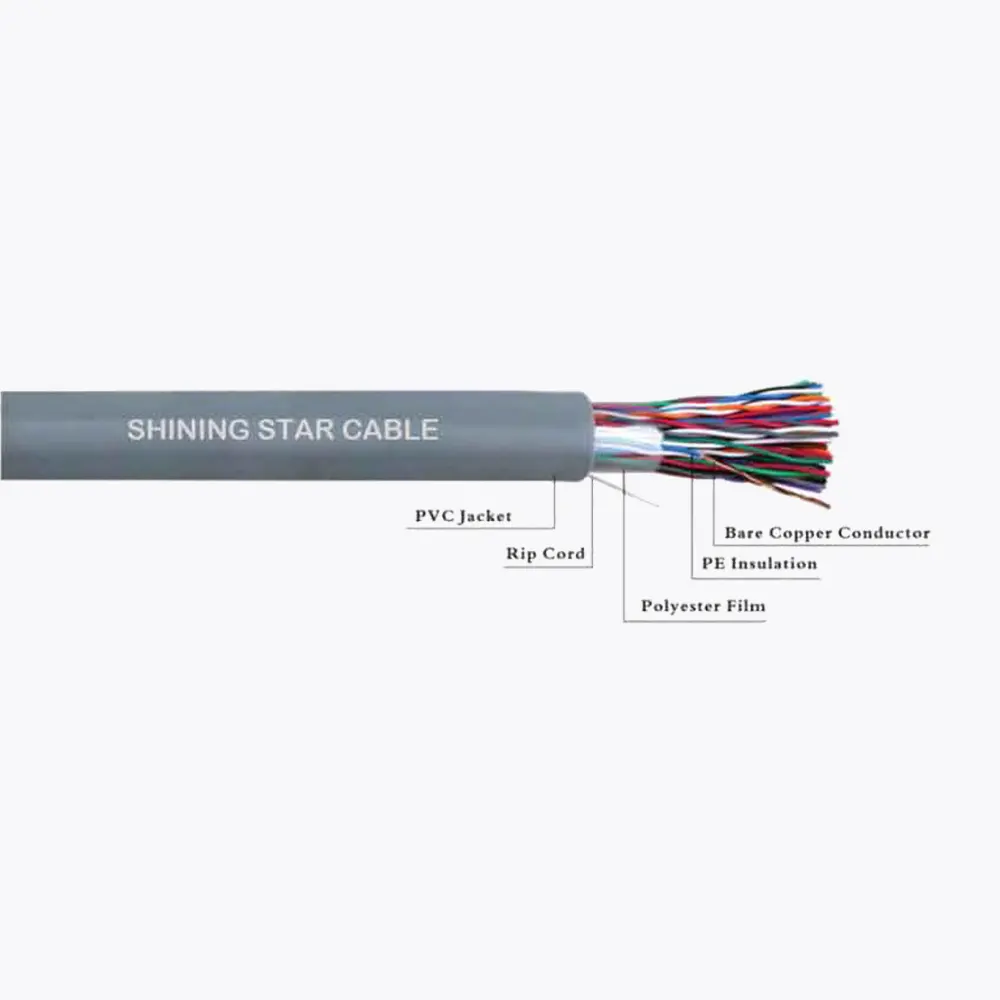

Specifications
- Insulation: Semi-rigid PVC
- Jacket: Flame Retardant Chrome PVC with
- sequential footage markings
- Ripcord: Applied longitudinally under jacket
- Operating Temperatures: -10c to +60c
- Voltage Rating: 300 volts
- Conductors: Solid bare copper
Standards
- TIA/EIA-568-C.2,
- ISO/IEC 11801:2011 edition 2.2
- EN 50173:201
Applications
- Voice
- T1
- 4Mbps Token Ring (IEEE 802.5)
- 10 Base-T (IEEE 802.3)
- 52 Mbps ATM
- VG-Any LAN
- ISDN

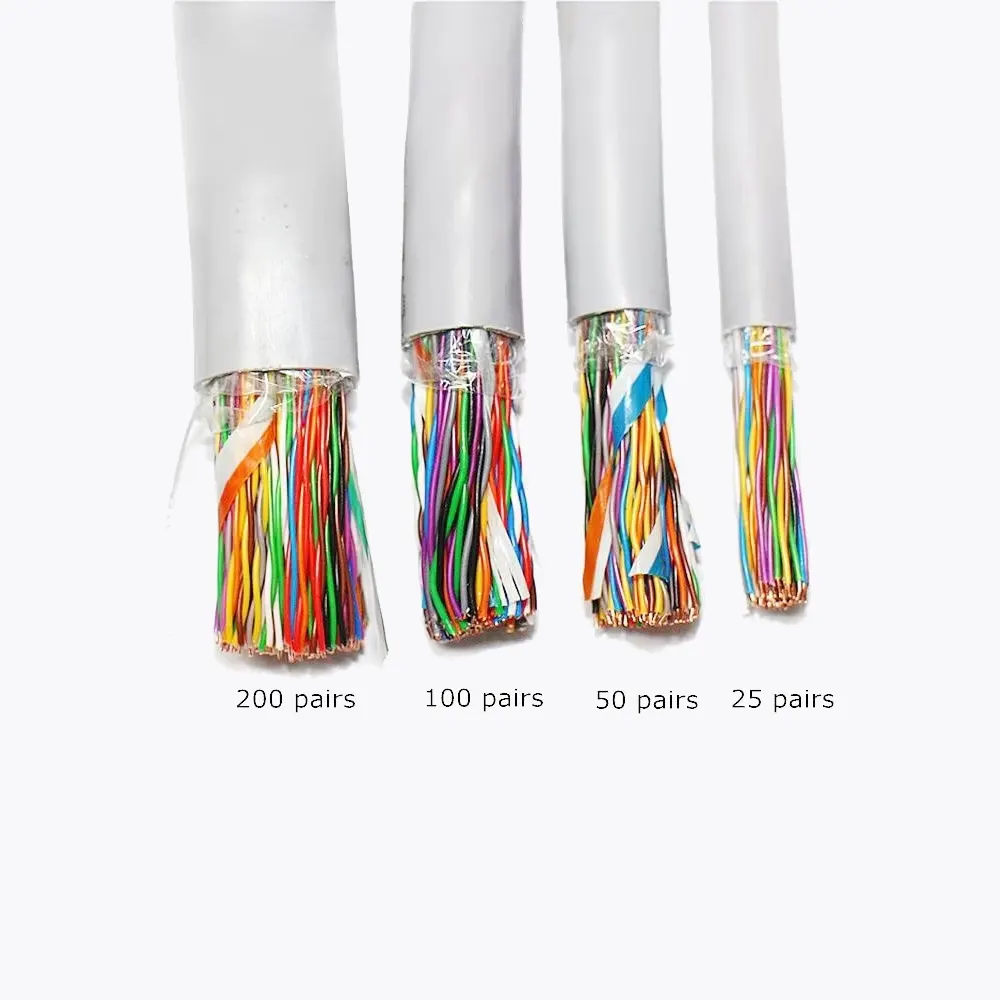

Models
- 100 Pair Indoor Cables
- 50 Pair Indoor Cables
- 25 Pair Indoor Cables
Electrical Properties
1. Characteristic impedance: 100 15 Ohm
2. Maximum resistance unbalance: 5%
3. Bending radius (min.): 8 x cable diameter
4. Maximum capacitance unbalance: 330 pF/100 meters
5. Maximum delay skew: 45 ns/100 meters
It is mainly used for vertical trunk line of voice building. The large logarithm twisted pair is an indispensable part of the building backbone. It can combined with the 110 cable management equipment to achieve voice or data (16MHz) cross transmission and cabling.
A telephone cable is a method of guided transmission for your phone line. This means it acts as a physical path to transmit electromagnetic waves and carry information from point to point. This is done by means of a conductive material such as copper wiring.
