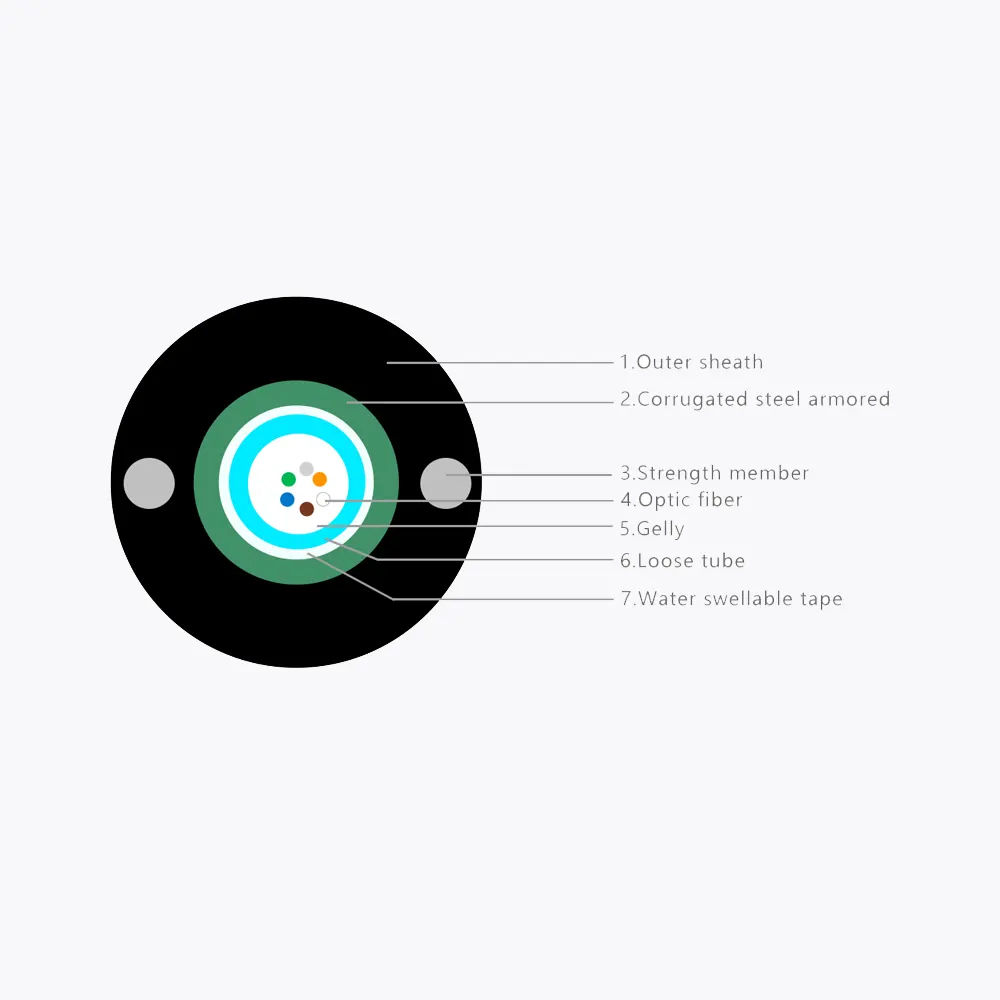

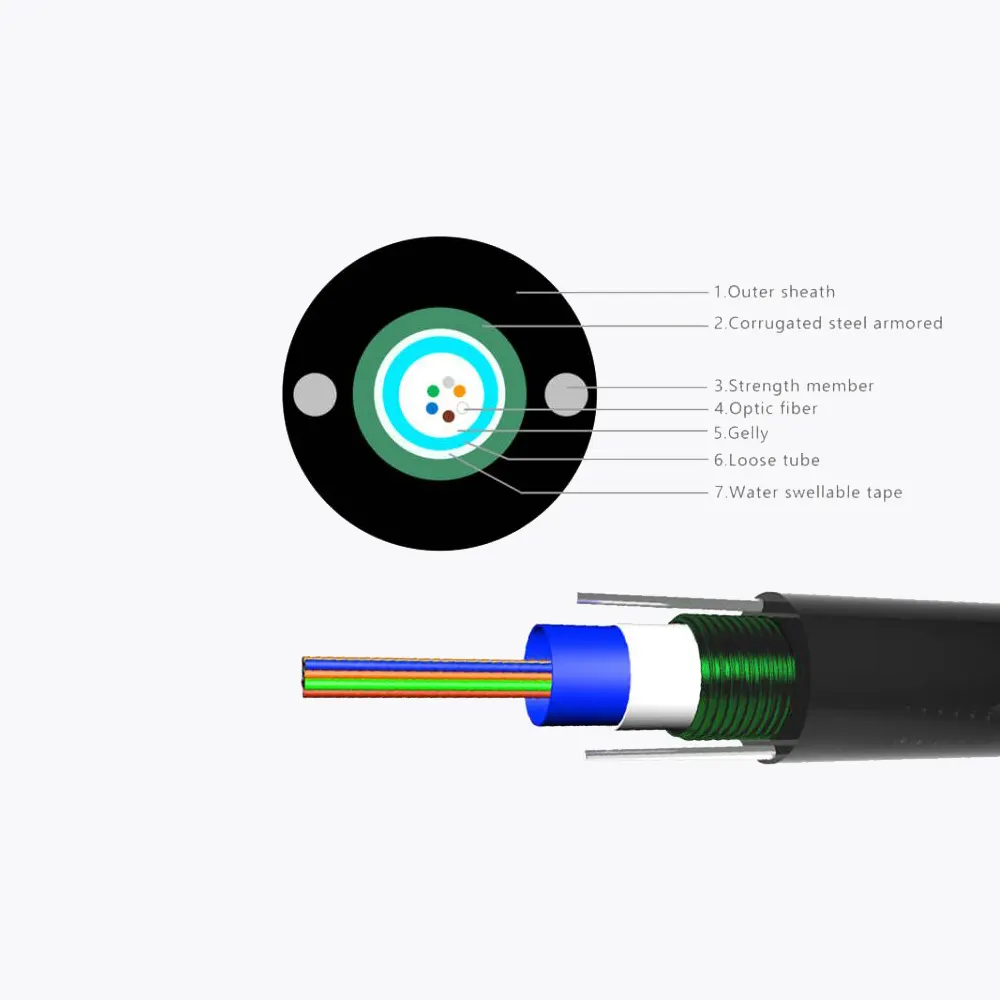

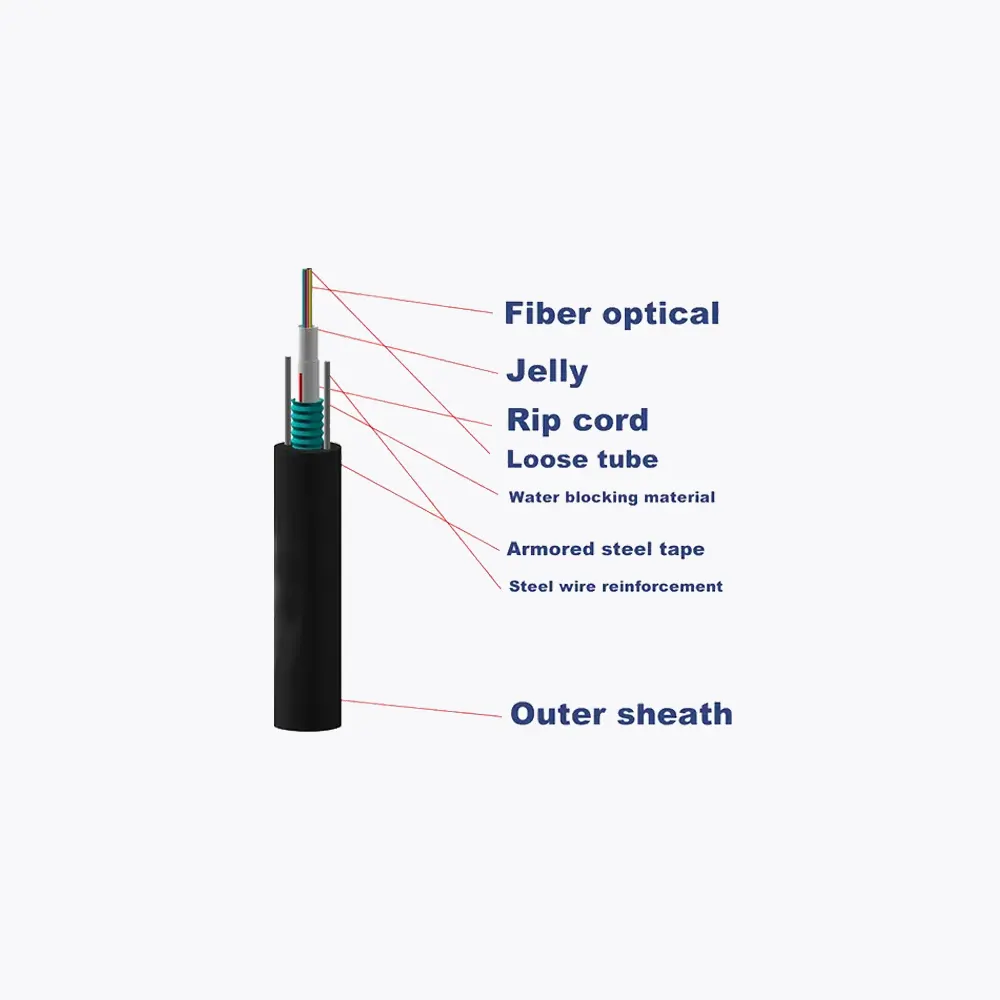

Structure
- GY — Communication room (field) outdoor optical cable
- X — Cable center tube (cover) structure
- T — Filled structure
- W — Steel-polyethylene bonded sheath with steel wire (referred to as W sheath)

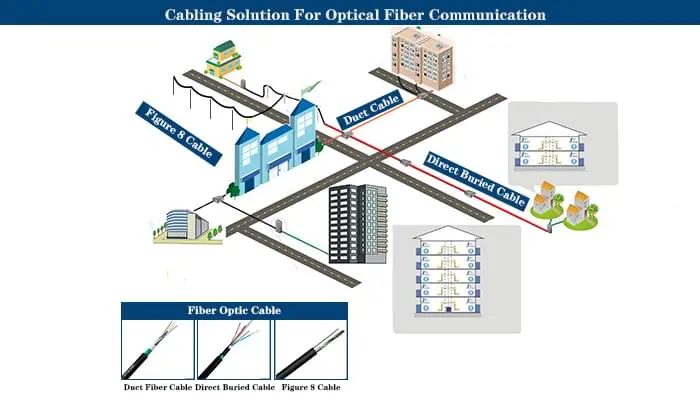

The GYXTW cable is engineered for long-distance outdoor communication. Its central loose tube design offers exceptional protection for the fibers, ensuring reliable performance even in harsh conditions. This cable excels in both aerial and duct installations, providing a cost-effective solution for telecommunication and data transmission networks. Therefore, its robust design guarantees consistent operation across diverse outdoor settings.

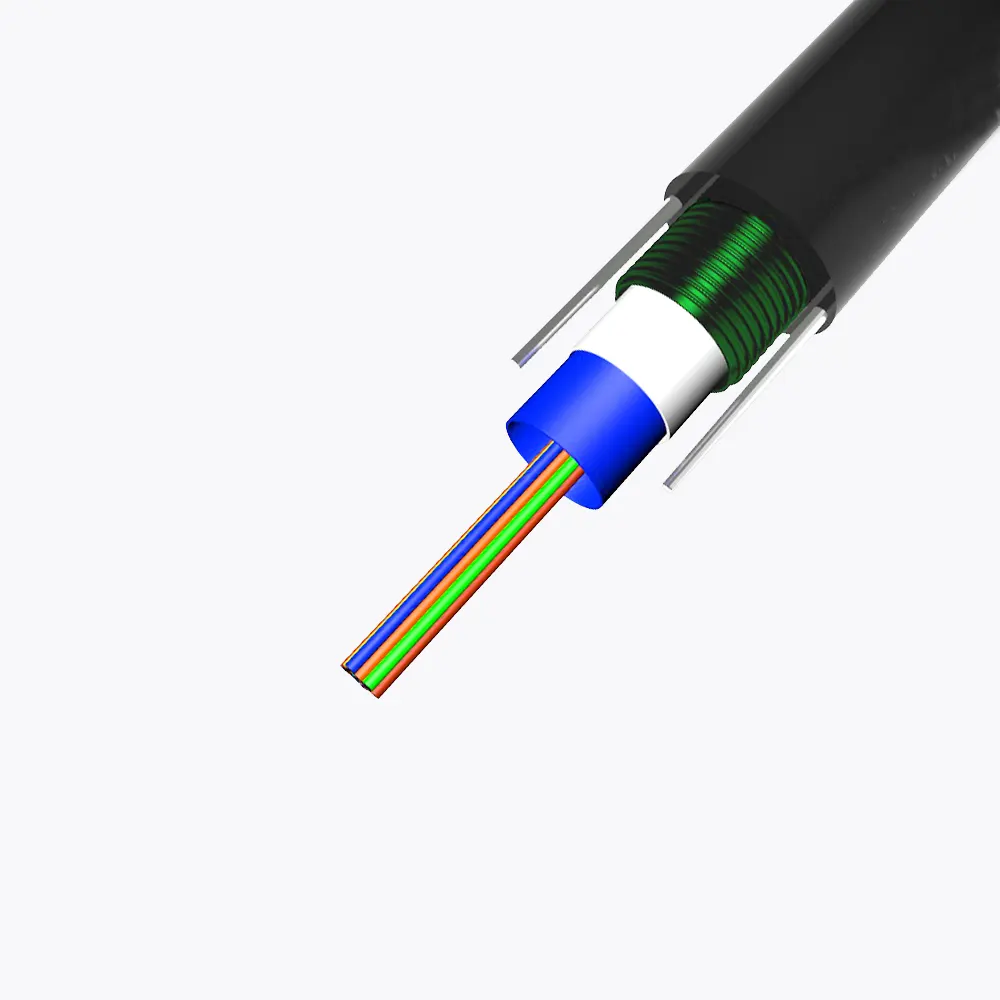

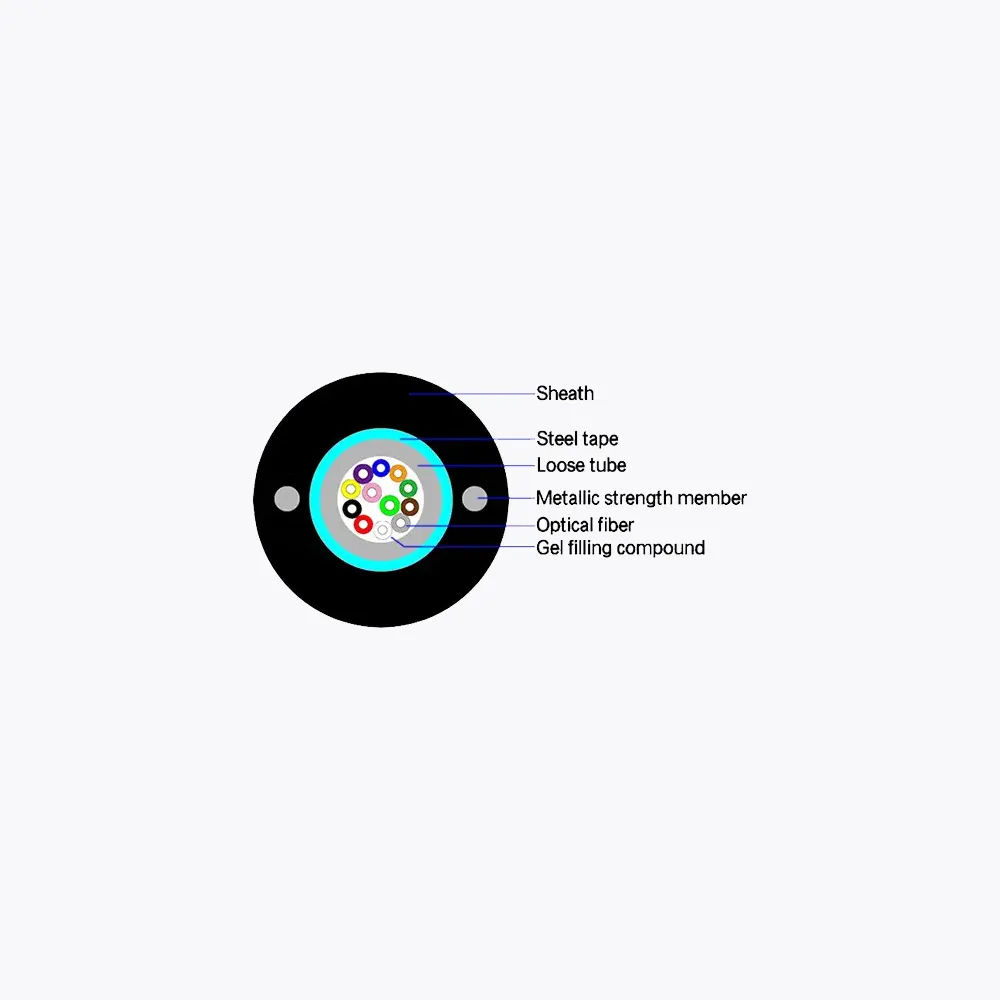

Physical Parameters
Fiber Count: Choose from 2 to 24 fibers, meeting different network needs effectively.
Central Strength Member: The cable features high-strength steel wire to maintain its structural integrity.
Loose Tube: Filled with a water-blocking gel, this tube protects the fibers from moisture.
Outer Jacket: The UV-resistant and high-density polyethylene (HDPE) jacket provides excellent environmental protection.
Armored Layer: Corrugated steel tape enhances the cable’s resistance to mechanical damage.
Dimensions: With a diameter of 9.8mm, the cable remains compact and easy to handle.
Raw Materials
The GYXTW cable incorporates high-quality materials to ensure durability and reliability. For example, the central loose tube, filled with water-blocking gel, effectively prevents moisture from impacting the fibers. The outer jacket, made from UV-resistant HDPE, shields the cable from environmental damage. Additionally, the corrugated steel tape provides an armored layer that protects against physical damage during installation and throughout its operational life. Thus, these materials significantly contribute to the cable’s long-term performance.
Main Feature:
1.Excellent mechanical and temperature performance guaranteed by the accurate excess fiber length.
2. Critical protection to fibers, based on the excellent hydrolysis resistance.
3. Excellent crush resistance and flexibility.
4. PSP enhances the cable crush-resistance, impact-resistance and moisture-proof.
5. Two parallel steel wires ensure tensile strength.
6. Excellent ultraviolet prevention with PE sheath，small diameter, light weight and installation friendliness.
In summary, the GYXTW cable offers a remarkable combination of durability, flexibility, and performance, making it a superior choice for outdoor communication networks. Its sturdy design and adaptable application ensure reliable data transmission over long distances. Whether you use it for aerial or duct installations, the cable meets the stringent demands of modern communication systems. Furthermore, the high-quality materials and thoughtful design enhance its reliability in various outdoor environments. As a result, the GYXTW cable proves to be a dependable solution for diverse networking needs.
Additional Options
We offer a range of cables including the GYTA, GYXTW, GYTA53, GJFJV, and ADSS models. These cables are suitable for both indoor and outdoor use, providing flexibility based on specific needs and installation conditions. Notably, these cables are particularly effective in environments where high levels of moisture resistance and rodent protection are crucial. Each type is designed to meet different operational requirements, ensuring reliable performance across various applications.
Benefits of the GYTS Cable
GYTS cable stands out due to its hydrolysis resistance and high strength, making it particularly suitable for demanding environments. The combination of durable materials and advanced design features ensures that the cable maintains performance and reliability even in harsh conditions. Its robust construction not only protects the fibers from physical damage but also provides excellent moisture and rodent resistance. As a result, the GYTS cable is a dependable solution for various networking needs, offering both longevity and consistent performance in diverse applications.
