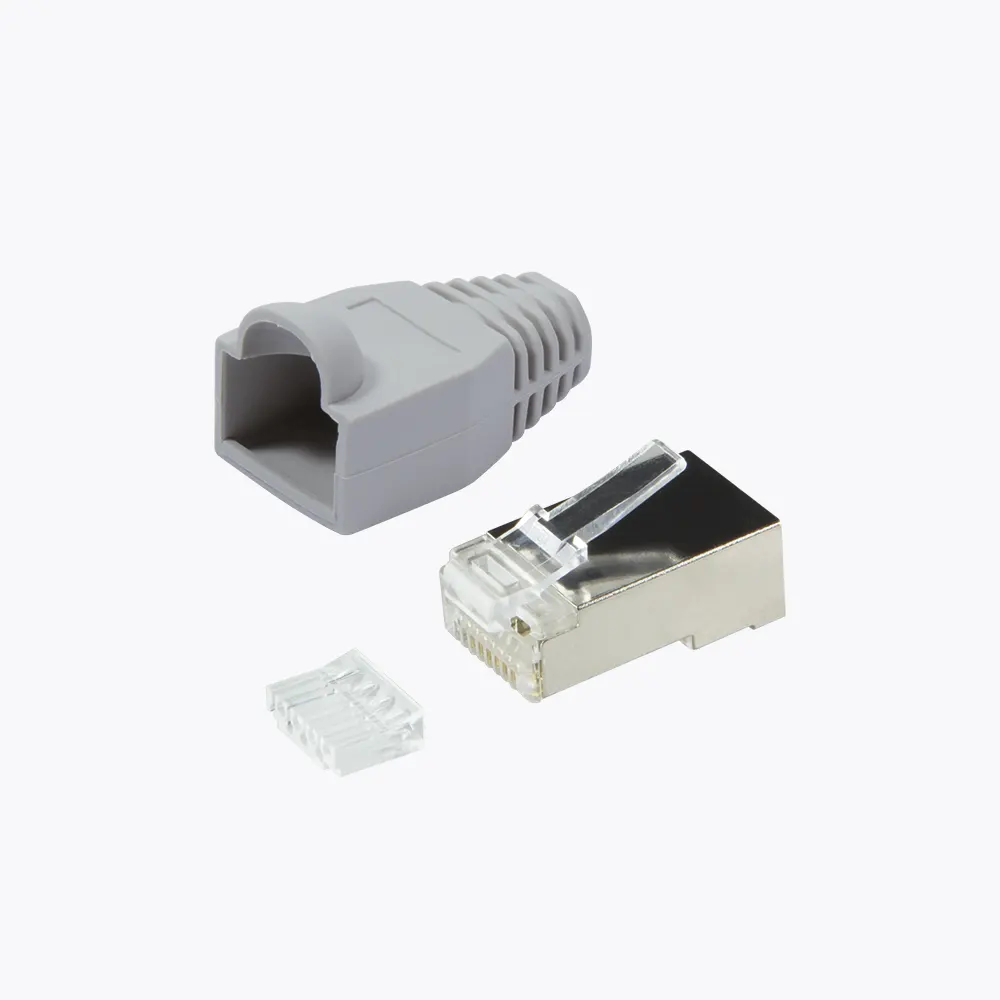

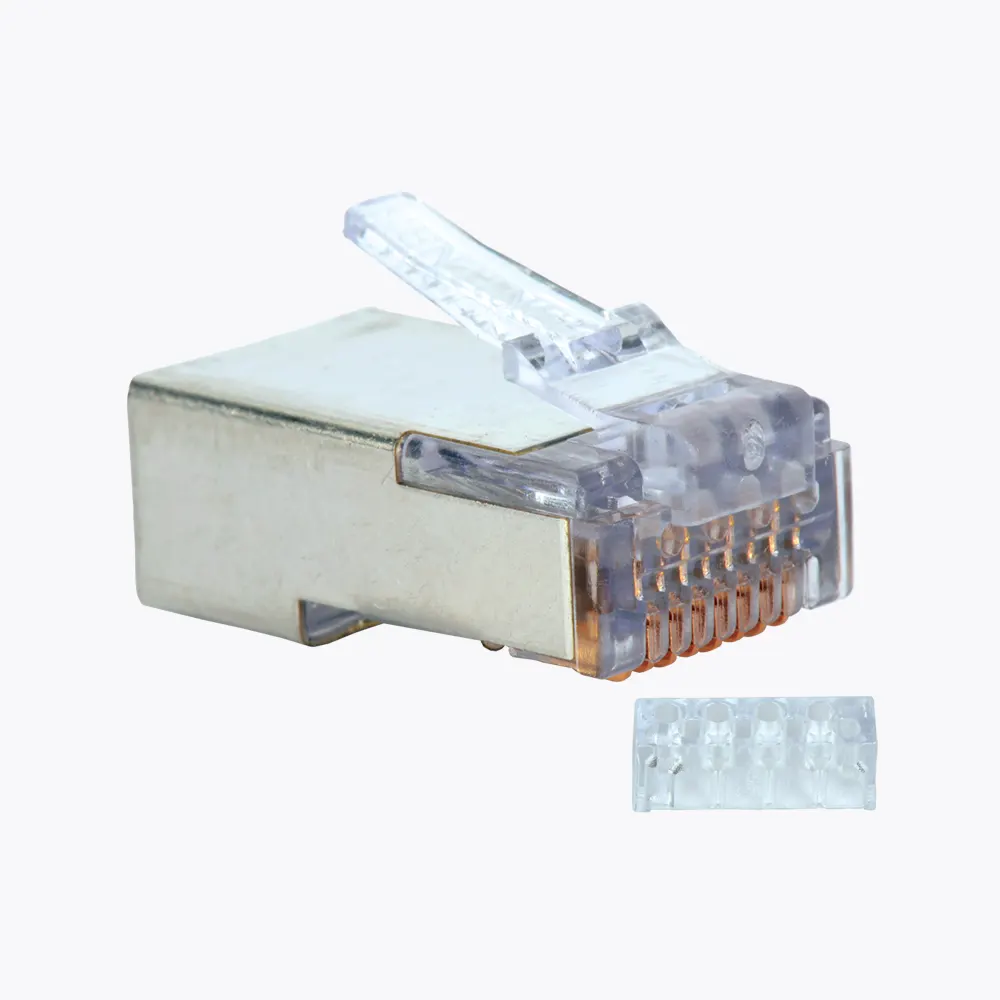

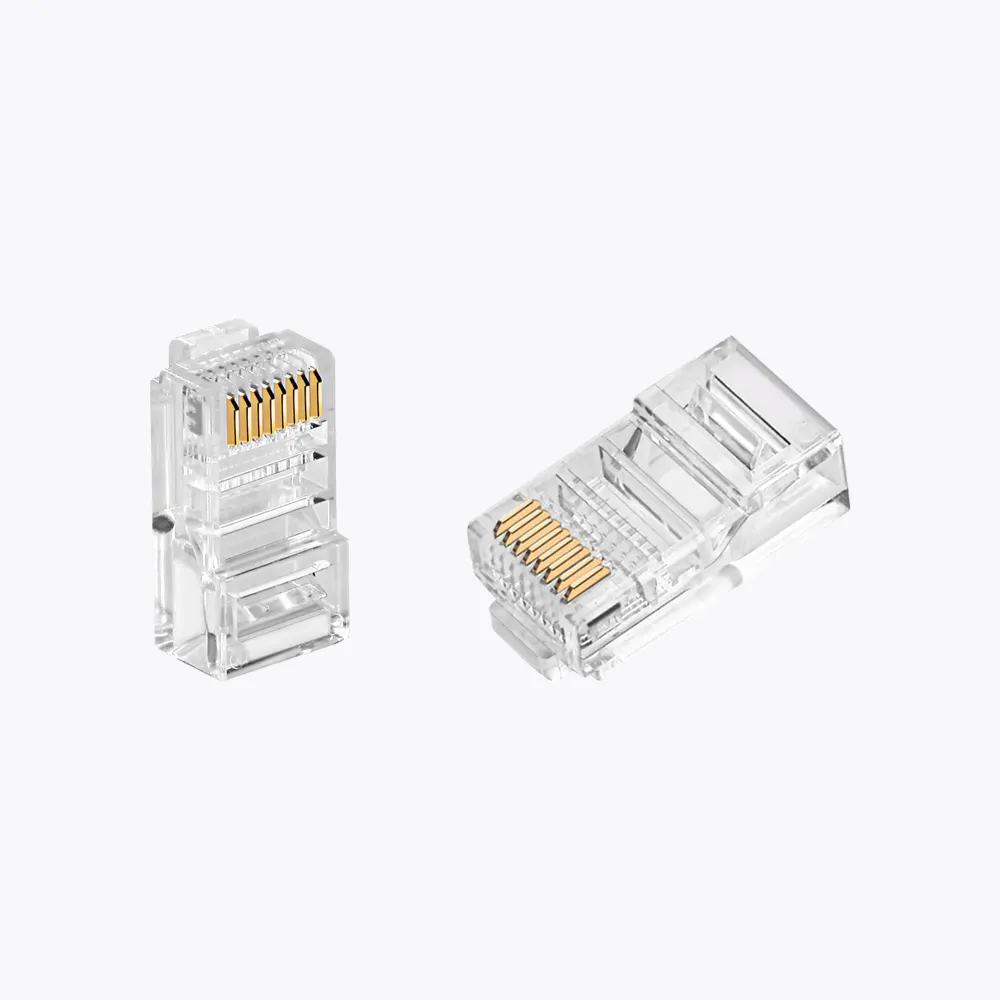

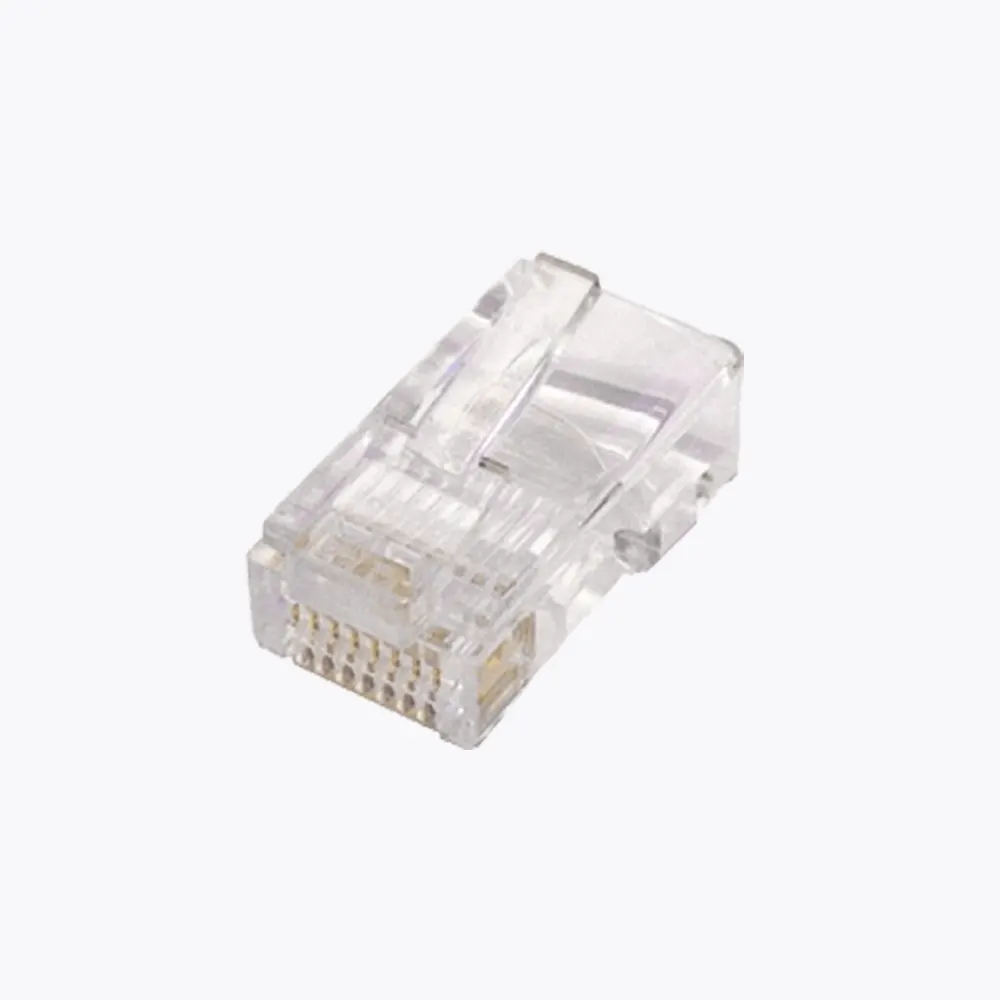

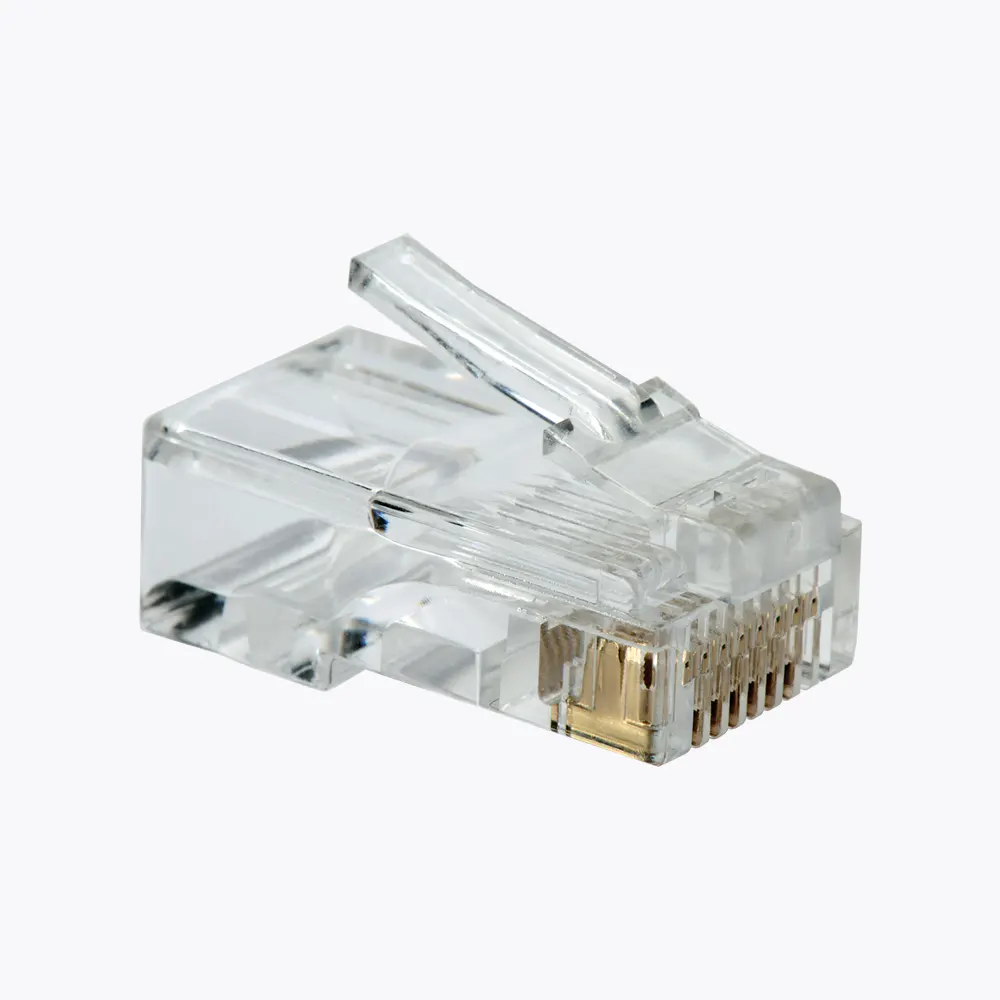

RJ45 Connector perfect for assembling ethernet connection with a shielded network cable or installation cable, you can use it to construct RJ45 Cat6a/Cat7 network cable which inner wire should be within 1.1mm to 1.5mm.
Features
- RJ45 modular plug supports 4 twisted pair
- Terminates 24-26 AWG stranded wires, wiring scheme T568A/T568B
- Fit Cat.6A UTP requirements
- Superior two-prong contact design works for both Solid or Stranded conductors
- 30-micron gold plating for connection quality, performance, and durability
- Integrated snag-less strain relief boot to protect the cable and connection
- Plugs are packaged as 100 pieces per bag
Specifications
- RJ45 modular plug supports 4 twisted pairs, meets wiring scheme
- Housing: polycarbonate, 94V-2, transparent color
- Contact terminal: phosphor bronze
- Finished: 30 micro-inch gold plating, over 50 microinch Nickel plated on the contact area
- Operating temperature: -40˚C to 80˚C
- Cable to plug tensile strength: 7.7 kgs
- Terminates 24-26 AWG stranded wires, wiring scheme T568A/T568B
Applications
* LAN
* Premise wiring
* Gigabit Ethernet
* 10/100/1000TX
