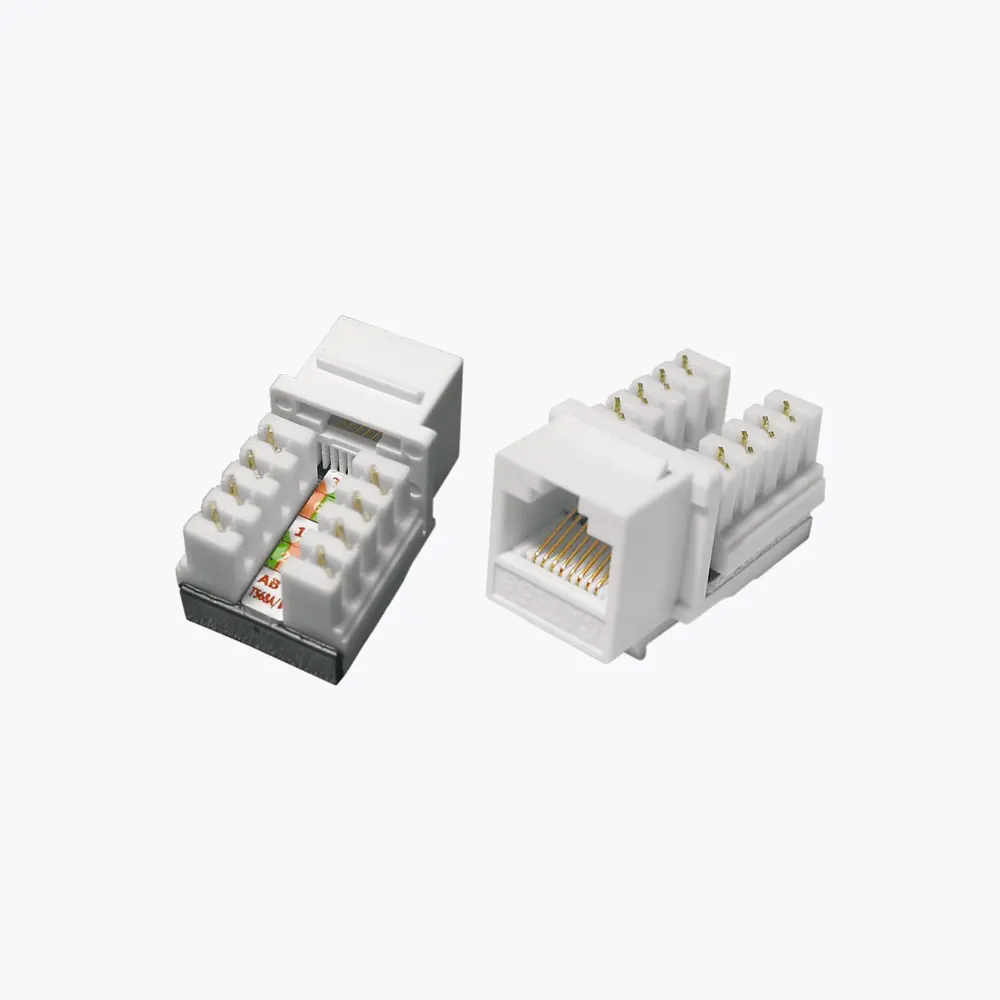

independent appearance design. which is simple, nice and compact
* Unique PCB pair lo pair design, reducing interference, raising margin
* Comply with T568A/TS68B slandered, with marked labels on jack
* Use high-strength Polycarbonate for terminal shell, and phosphor bronze for IDC connection block, with over 250 times termination
* Using a single blade punch down tool
* Suitable for 26AWG, HAWG. 23AWG
* 50 µ gold-plated contact pin, 1500 cycles of plug and unplug cycle life
* The protective cover on the rear of jack has a padlock design, avoids excessive cable bending after connecting, disconnection and protects mating contact points
* Downwards compatibility with CAT5E and lower Categories
Features

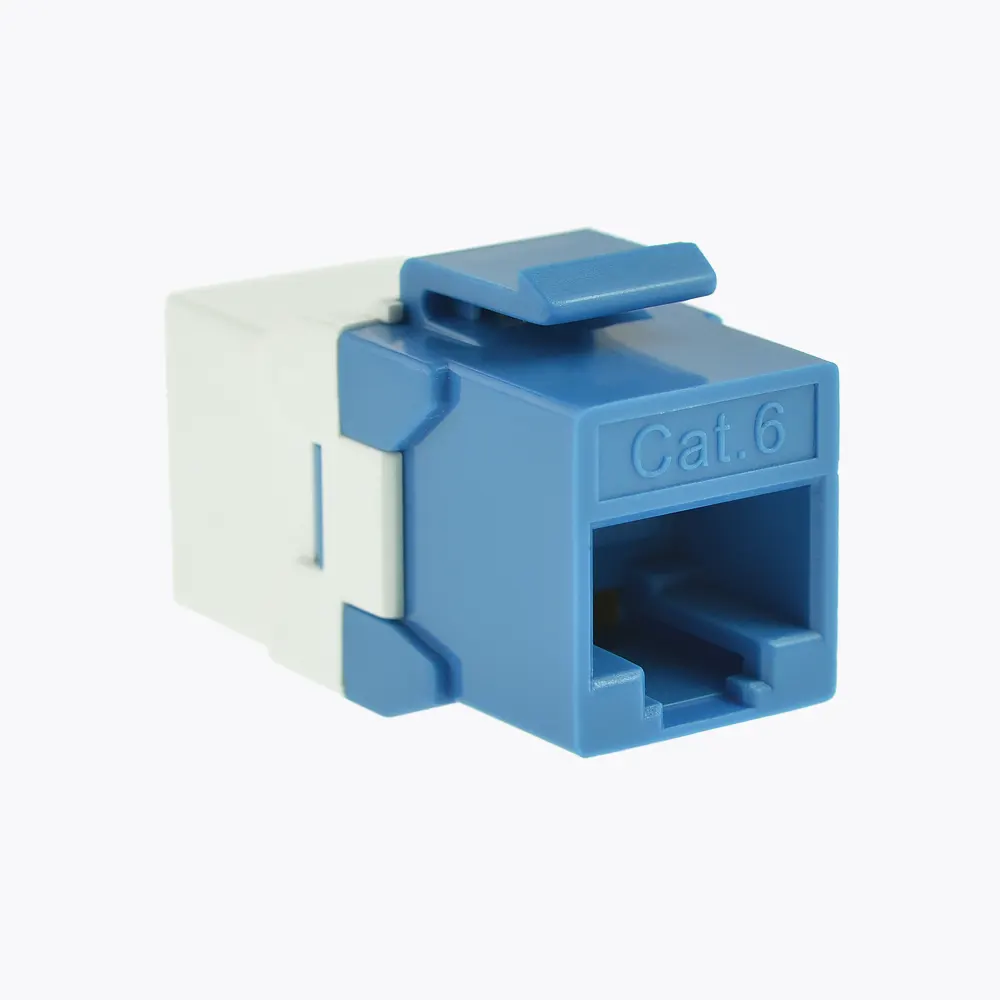

- RJ45 8P 8C 90˚C 50u Punch Down Jack
- Terminating 4 pairs, 22-26 AWG Cable

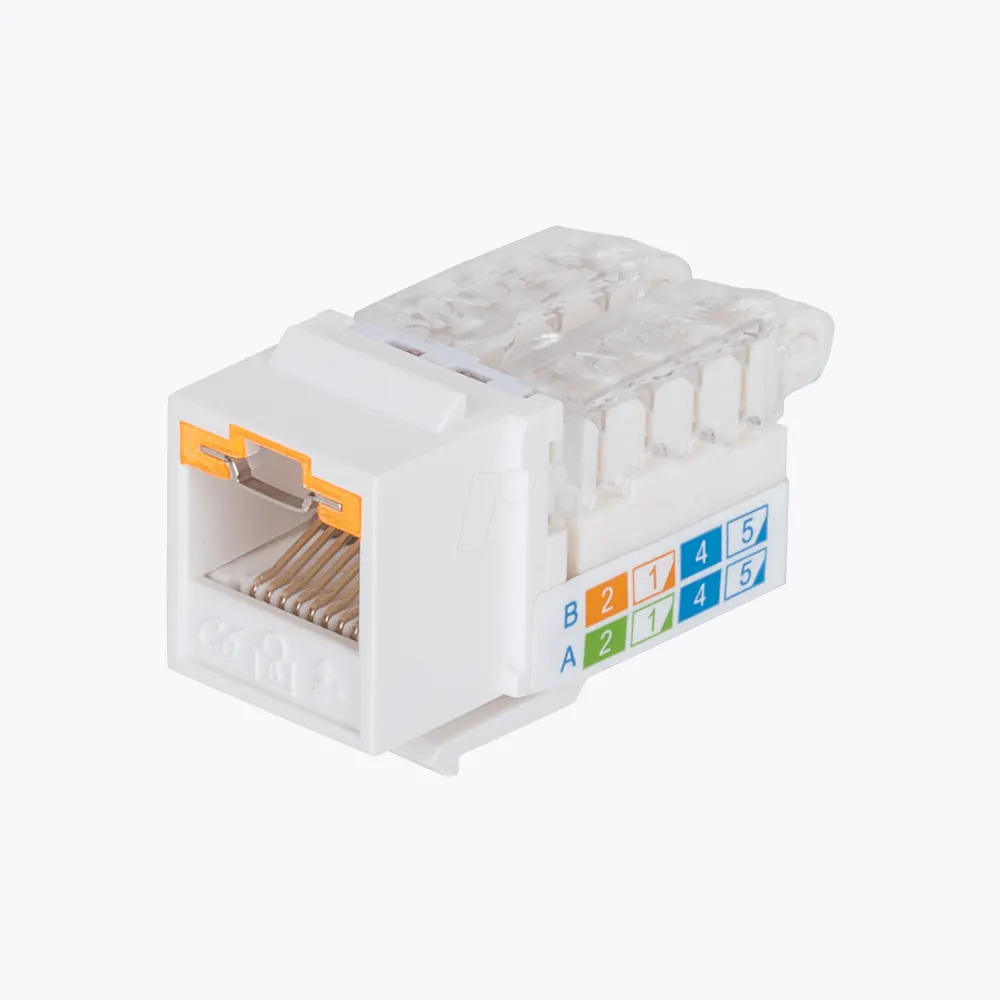

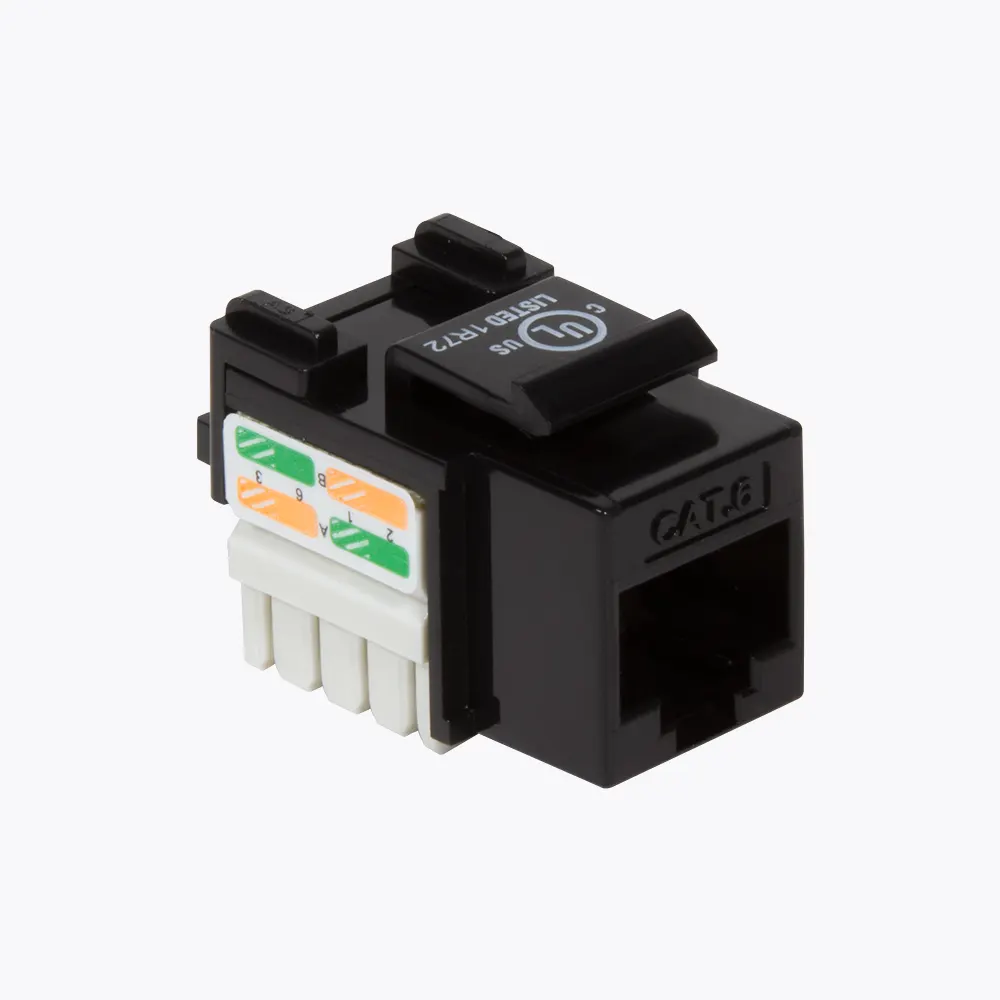

- Universal labels colour coded for T568A and T568B wiring schemes
- Fitting high-density keystone panel
- UL, ETL, RoHS certified
- Two types of tools can be used for termination:110 and Krone Type
- IDC contacts that allow re-termination without damaging the unit
Specifications
- Housing: High-impact Flame Retardant Polycarbonate, UL94V-0
- Spring Wire: Phosphor Bronze With Gold-plated 3u-50u
- IDC Contact: Phosphor Bronze
- Insertion life:≥1000 mating cycles
- Operating Temperature Range: -600ºC to 800ºC
- IDC Accept: 22-26 AWG
- Wire Scheme: T568A/B
- Insulation Resistance: 500Ω
- Current Rating: 1.5Amps
- DC Resistance: 0.1-ohm MAX
- Voltage: 150 VAC MAX
- Plug Retention Force: 89N
Applications
- Horizontal Distribution and Backbone Area
- 4/16 Mbps Token Ring(IEEE 802.5)
- 10/100/1000 Base (IEEE 802.3)
- 155Mbps ATM
- 100 Mbps TP-PMD
- Analogue Voice, ISDN, ADSL
